Indoor 1W step lighting 12 volt led step light led stair light

FOB Reference Price:Get Latest Price
  • 50 - 199 Pieces
  • 200 - 499 Pieces
  • >=500 Pieces
Support Sea freight
Report Suspicious Activity
Quick Details
Item Type:
Cabinet Lights
Install Style:
Ressessed In
Switch Type:
Knob switch
Shade Type:
Shade Direction:
Input Voltage(V):
12V DC/350mA
Lamp Luminous Flux(lm):
CRI (Ra>):
Emitting Color:
Warm White
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
Light Source:
Beam angle:
120 deg
Housing color:
brushed aluminum finish
Cutout size:
D 36mm

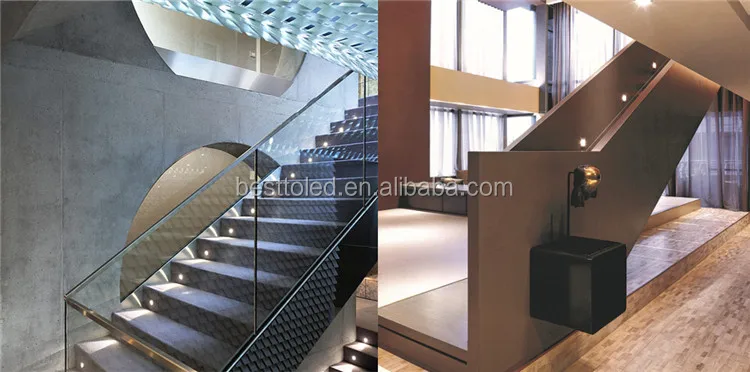

Step lightings/stairs/passageways
Color Temperature(CCT):
Warm White
Lamp Power(W):
LED Light Source:
Lamp Luminous Efficiency(lm/w):
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
white box or brown box without any logo, neutral packing,Carton box.
Carton size: 32x32x25cm
Gross Weight: 8.5kgs/carton
Lead Time :
7-12 days after order confirmed

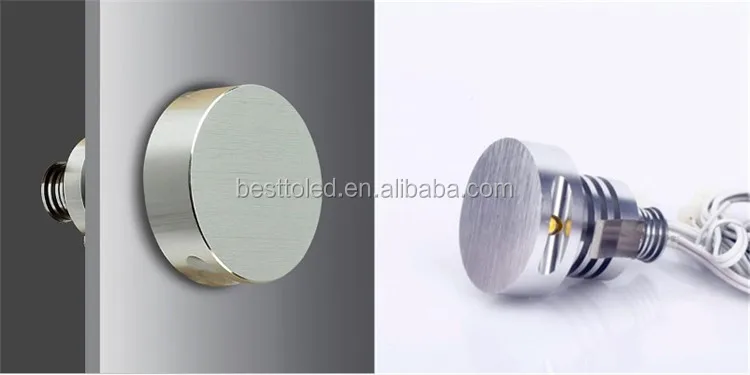

1 watt square recessed mini spot downlight for stairs or passageways (equivalent of 10 watt incandescent)
♦ Adopt High-bright Cree Edison High power 1W LED.
♦ Beam angle: 120°
♦ Wall-mounted, recommended height of less than 18 " or 46cm
♦ Equivalent of 10 watt incandescent
♦ No dazzling,
♦ With brushed aluminum finish
♦ 12V DC input,
♦ 3 years warranty.
♦ Certification: CE, RoHS
Model NOBT-DL32
Input:12V DC350mA
Power Consumption:1W
LED Chip BrandEdison
Lumen output:80-90LM
Lumen maintenance:70% at 30000 hours, no flickering
CRI:Color Rendering index: >80
LED Color Temperature:Warm White 2800-3300 / Neutral White 4500-5000K / Cool White 6000-6500K
Surface Color:brushed aluminum finish / White Painting finish
Beam Angle:120°
Operation Temperature:-40~50 degrees Celsius
Protection Rating:IP20 ( Indoor Use Only)
Material:aluminum shell
Installation:Recessed mounted/wall mounted
Certificate:CE, RoHS
Warranty3 Years
 Connection diagram:

Input constant current 350mA


1-6pcs 1W LED stair light wall lamp can be connected in series (not in parallel), but it is limited by the max power consumption of the constant current LED driver.

Input voltage: /

Input current: constant current 350mA

Power consumption: 1W

Import notice:

Before switching on the power, please make sure all the connectors and wires are connected tightly.

Any poor connection or wrong way of operation may cause the damage of LED by instant Higher voltage

Recommend to use constant current LED driver with protective function to avoid any damage caused by poor connection or wrong way of operation.

Input constant voltage 12VDC


Electrical structure: 1 PCB + 1 LED + 350 current regulator on the PCB

Input voltage: 12V DC;

Input current: /

Power consumption: 1W

One 12V power supply can work with multiple 1W led stair light which are connected in parallel (not in series), but it is limited by the max load of the 12V power supply.

Import notice:

The total power consumption of the lights connected should be less than 90% of the max load of the power supply.

Low heat, no UV or IR light radiation, Environmentally Safe-no Mercury.

Bestto Technology Co., Ltd, a global LED lighting supplier with production base in Shenzhen, is at the service of LED strip light, led cabinet light, led linear light and other indoor led lighting products, for the green and better life.

Established in 2011, the factory has been focused on R&D, production and sales of lighting. With 3000 square meters production base, the factory has advanced LED lighting manufacturing facilities such as reflow soldering and high speed SMT machine,Optical and electric testing device such as integrating spheres. We also have a professionally QC team and highly skilled workers to ensure the quality of all the products.

Bestto is proud of delivering high quality product and excellent service to customer, and make it easier for customers to specify, install and maintain good quality and energy efficient lighting. OEM/ODM and custom made is accepted. CE, ROHS, UL certificate is approved.

At Bestto, our philosophy is simple. With over 6 years of lighting experience, we understand that product design, quality and service must carry all that we do. This philosophy ensures that we lead the way in providing one-step LED lighting solutions.

Please believe in that we Bestto will be your best choice and you will be deeply impressed by our great service and super quality. Looking forward to a mutually beneficial partnership!
